Forklift Waste & Storage Tipping Bins

Keep it tidy with our range of Light weight and cost effective bins suitable for goods transport, storage or waste. Fitted with forklift carriage, these bins are designed for manual push over. Wheels are fitted as standard, 2 front and 1 swivel at the rear. Drain plug fitted as standard. Zinc plate finish.. Galvin Engineering always recommends you check your vehicles specifications and with the local Regulatory Authority like WorkCover to ensure any specific laws are covered when using waste or drop bins fitted to forklifts.

[hana-flv-player video="http://www.galvineng.com.au/wp-content/uploads/FSB_Operation.flv" description="" player="4" autoload="true" autoplay="false" loop="false" autorewind="true" /]

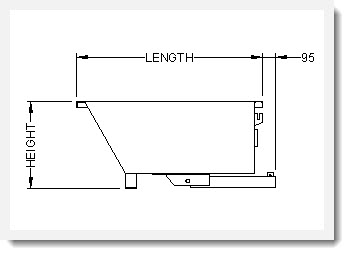

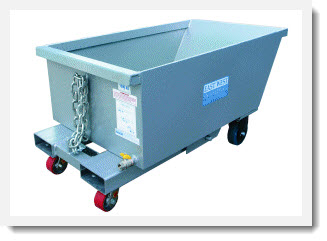

Type: FSB6 / FSB9 Fork Skip Bins


A light weight and cost effective bin suitable for goods transport, storage or waste. Manufactured from 2mm plate and is available in either painted or galvanised finish. Fitted with a forklift carriage this bin is for manual push over. Wheels fitted standard, 2 front and 1 back.

OPTIONS INCLUDE:
[list style="list5" color="blue"]

  • Crane Lugs
  • Drain Valve & Strainer

[/list]
[one_half]

[/one_half]
[one_half_last]

[/one_half_last]

[hana-flv-player video="http://www.galvineng.com.au/wp-content/uploads/DBHS2_Operation.flv" description="" player="4" autoload="true" autoplay="false" loop="false" autorewind="true" /]

[divider]

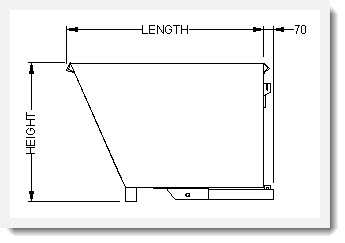

Type: NSD6 / NSD9 / NSD12 / NSD15 / NSD18 Bins

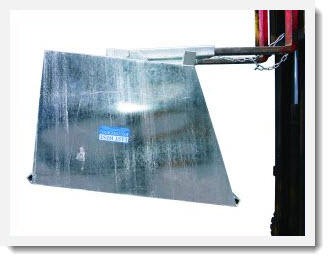

Type NSD Self Dumping Waste Bins provide an economical solution to collecting and disposing of industrial waste. During transport, the Forklift tines are positioned fully under the bin ensuring the Forklift full lifting capacity is utilised. To empty the bin, the operator places the front feet of the bin inside the edge of the bulk dumpster, then drives backwards until the tines clear the pivot point and then raises to allow the bin to tip forward.

Reinforced edges are standard. Bins are stackable up to 3 high. Available in either enamel painted or galvanised finish.

OPTIONS INCLUDE:
[list style="list5" color="blue"]

  • Crane Lugs
  • Cast Iron or Rubber Wheels
  • Drain Valve & Strainer

[/list]
[one_half]

[/one_half]
[one_half_last]

[/one_half_last]

[divider]

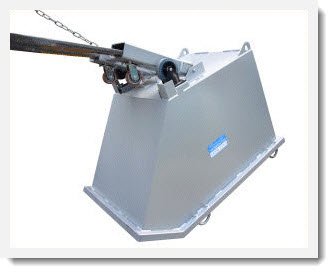

Type: SSD3 / SSD4 / SSD5 / SSD6 Self Dumping Bins


A low profile, compact bin for use in confined areas. Well suited to production machinery such as punching machines for collection of slugs etc. Heavy duty construction with self dumping ability, the Forklift operator empties the bin without leaving the drivers seat. Available in either enamel painted or galvanised finish.

OPTIONS INCLUDE:
[list style="list5" color="blue"]

  • Crane Lugs
  • Cast Iron or Rubber Wheels
  • Drain Valve & Strainer

[/list]
[one_half]

[/one_half]
[one_half_last]

[/one_half_last]

[hana-flv-player video="http://www.galvineng.com.au/wp-content/uploads/SSD_TippingOperation.flv" description="" player="4" autoload="true" autoplay="false" loop="false" autorewind="true" /]

[divider]

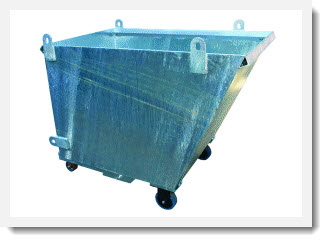

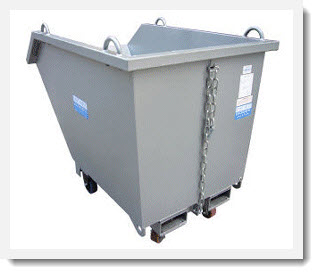

Type: CSD Forklift Tipping Bin


This economical bin is a self dumping bin suitable for most waste handling applications. This bin is supplied standard with 4 crane lifting lugs plus 2 upending lugs underneath.

It is also fitted with a drain plug and wheel brackets (wheels not supplied unless ordered). Being a nesting bin, it uses a minimum of space for storage and transport.

SPECIFICATIONS:
[list style="list5" color="blue"]

  • Safe Working Load (SWL): 1500kg
  • Crane Lugs fitted as standard
  • Drain Plug fitted as standard
  • Rubber or Cast Iron Wheels Optional

[/list]
[one_half]

[/one_half]
[one_half_last]

[/one_half_last]

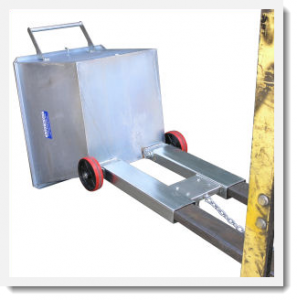

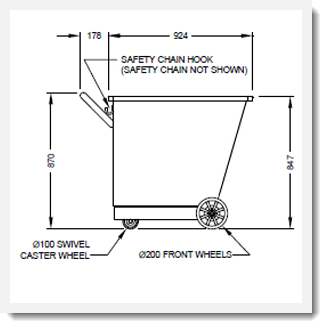

Type: CFS6 Forklift Waste & Storage Tipping Bin

Light weight and cost effective bin suitable for goods transport, storage or waste. Fitted with forklift carriage, these bins are designed for manual push over. Wheels are fitted as standard, 2 front and 1 swivel at the rear. Drain plug fitted as standard. Zinc plate finish.

SPECIFICATIONS:

  • Safe Working Load: 350kg
  • Volume Capacity: 0.31cu m
  • Unit Weight: 65kg
  • Pocket size 140 x 65mm
  • Pocket Centres 367mm



[one_third]

[/one_third]
[one_third]

[/one_third]
[one_third_last]

[/one_third_last]



[divider]
[one_third]

[/one_third]
[one_third]

[/one_third]
[one_third_last]

[/one_third_last]
[one_third]

[/one_third]
[one_third]

[/one_third]
[one_third_last]

[/one_third_last]
